10’X6′ LED WALL KIT:

Includes: 24 panels 500X500mm or 12 500X1000mm, 3Travel Cases, Cables and Processor with NovaStar Software.

INDOOR/OUTDOOR

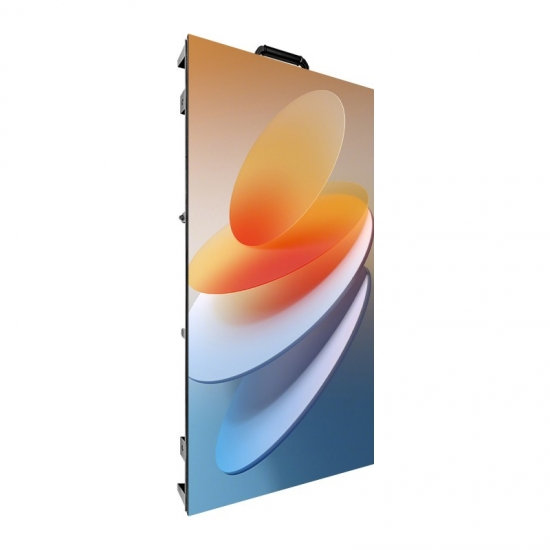

V PRO SERIES LED PANELS

Pixel Pitch(mm)3.91

Configuration SMD 2121

Brightness (cd/㎡)≥1000 Scan161/13

Module Dimension 250×250mm

Cabinet DimensionV — 500x1000mm

Cabinet Material: Die Casting Aluminum

Cabinet WeightV — 8KGH — 14KGV

Power Con.(W/㎡) (Max / Avg)800W/200-300W

Service AccessFront/RearFront

Refresh Rate (HZ)≥ 3840

Grey Scale (bit)≥16

Viewing Angle (H/V)160°

IP RateIP43

Input Voltage (AC)110V / 240V

* Specifications and photos are subject to change without
